20-Piece Watch Press Set for Repair - Case Cover & Back Press Tool | Watchmaking & DIY
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:16 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:67264971
Product Description
Features: 1. Both upper and lower are M6 threads, compatible for Bergeon 5500A/5500C 2. Great for closing your watch case after resizing or repair job. 3. You can press the tool by tightening the top handle, which means you have full control over the pressure used. 4. It is easy to break the watch with other tools while you feel it prefect to close case with our tool. 5. Face down configuration means the repair person sees the case back being closed. Specification: Material: Stainless Steel + Aluminium Color: Shown As Pictures Press Tool Size: Approx. 12 * 10 * 20cm / 4.72 * 3.94 * 7.87inch Round Size: 18/20 21/23 24/26 28/30 31/32 33/34 36/38 40/42 43/45 48/50 2 Round Dies: 16/16 20/25mm Square Size: 20 25 30 35 40 45mm Shield Size: 37 45mm Weight: 1620g Type: Repair Tools & Kits Package List: 1 * Clock gland tool 20 * Mold Note: The measurement error is about 2 mm, thank you for your understanding. There is an error in the size of manual measurement, thank you for your understanding. Instructions: 1. Choose a die which is bigger than the watch crystal and install it at screw-socket of under pliers. 2. Choose other die which is smaller than the rear cover and install it at screw-socket of up pliers. 3. Put a watch crystal adown at the under die and put the rear cover at a suitable position. 4. Lightly press down. 5. Putting a cloth under the watch crystal will protect the watch crystal.
Product Features
WIDELY USED WATCH CASE CLOSER The upper and lower screws of the watch capping machine are M6 threaded, compatible with the Bergeon 5500A / 5500C, and are widely used in various types of watches, which are very compatible and practical.
GOOD STABILITY The watch repair kit is made of high quality Stainless Steel + Aluminium material, it can be quickly and effectively disassembled and repaired with molds, helps to suppress the crystal and watch matrix, fix the watch, not It can cause scratches and marks on the dial and the watch cover, making it ideal for closing the case after resizing.

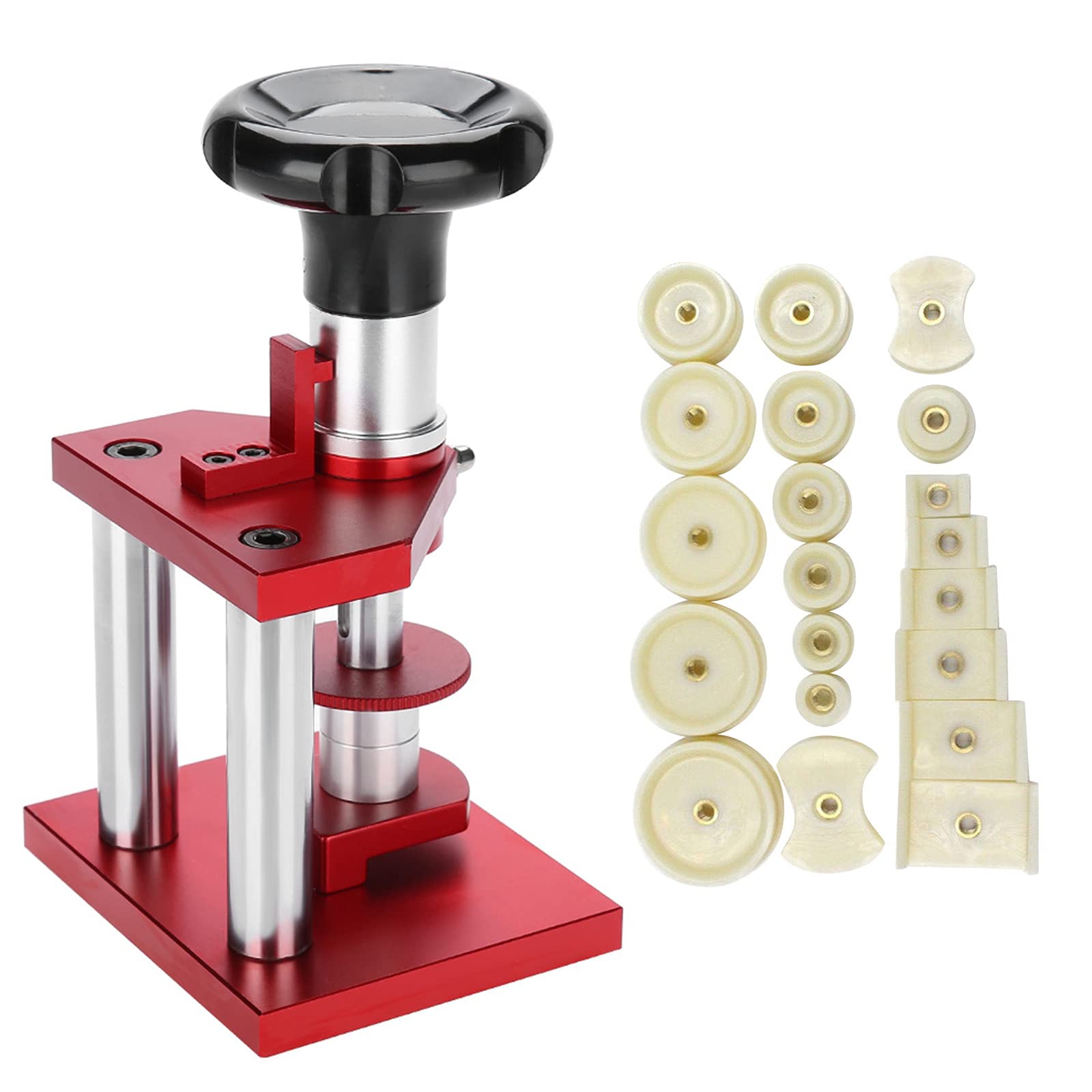

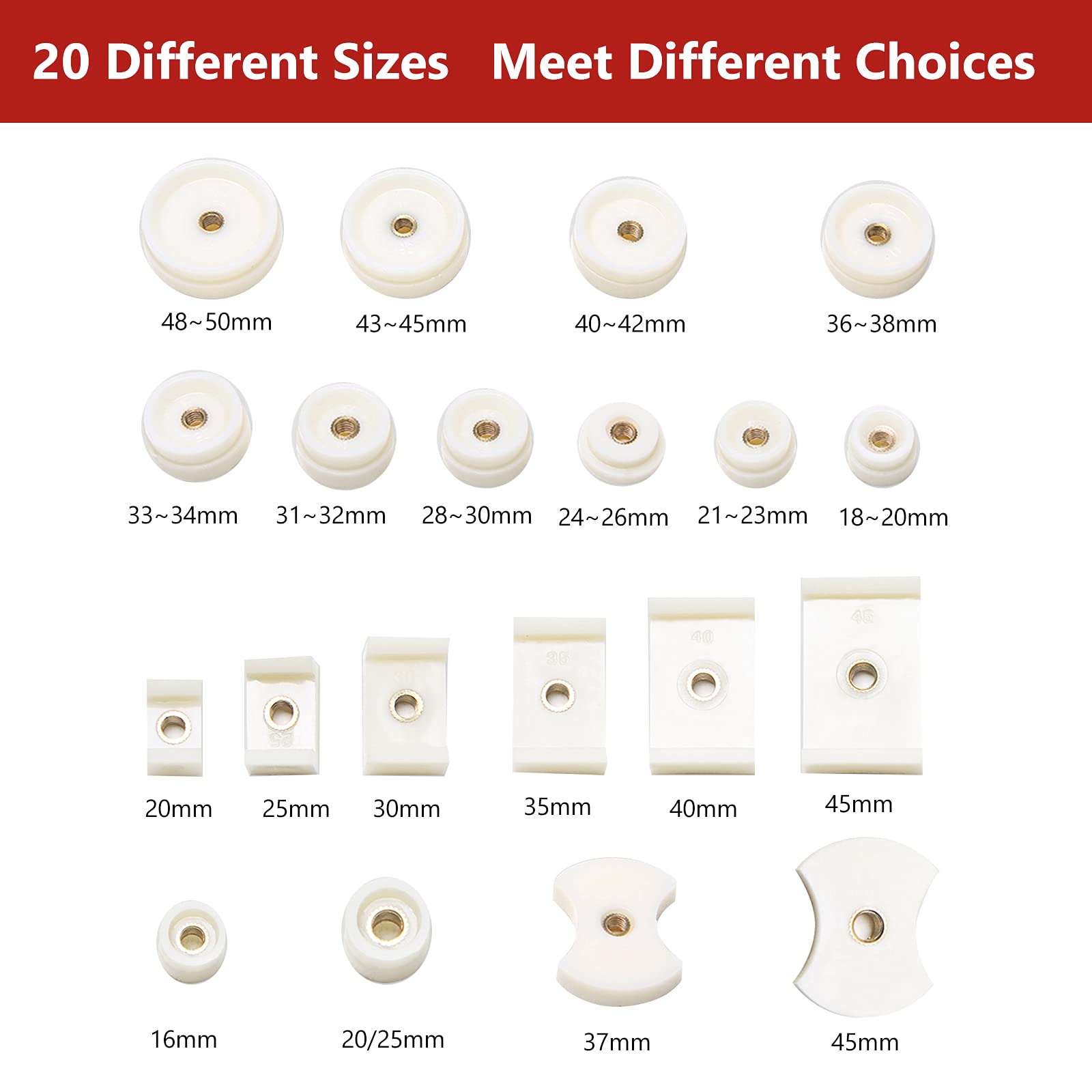

WITH 20 DIES PRESSING REPAIR The watch capping machine is equipped with 20 different watch dies, which are Round size 18/20; 21/23; 24/26; 28/30; 31/32; 33/34; 36/38; 40/42; 43/45; 48/50mm. 2 round dies 16/16mm; 20/25mm. Square size 20/ 25/30/35/40/45mm. Shield size 37/45mm. Can meet the size requirements of a wide range of watches.

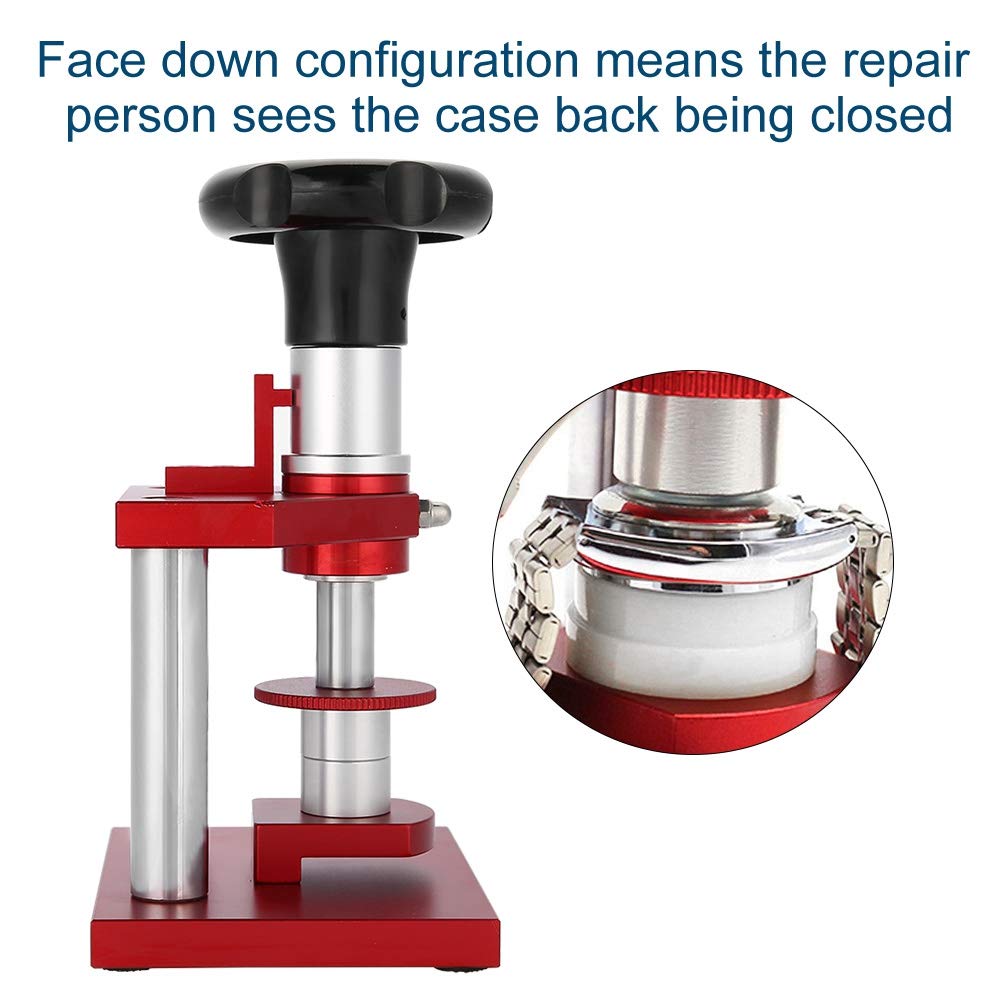

EASY TO USE Apply pressure by tightening the upper handle, which means you have complete control over the pressure used. You can use enough pressure to mount the watch crystal or the bottom. The face down configuration indicates that the service personnel can see that the back of the case is closed.

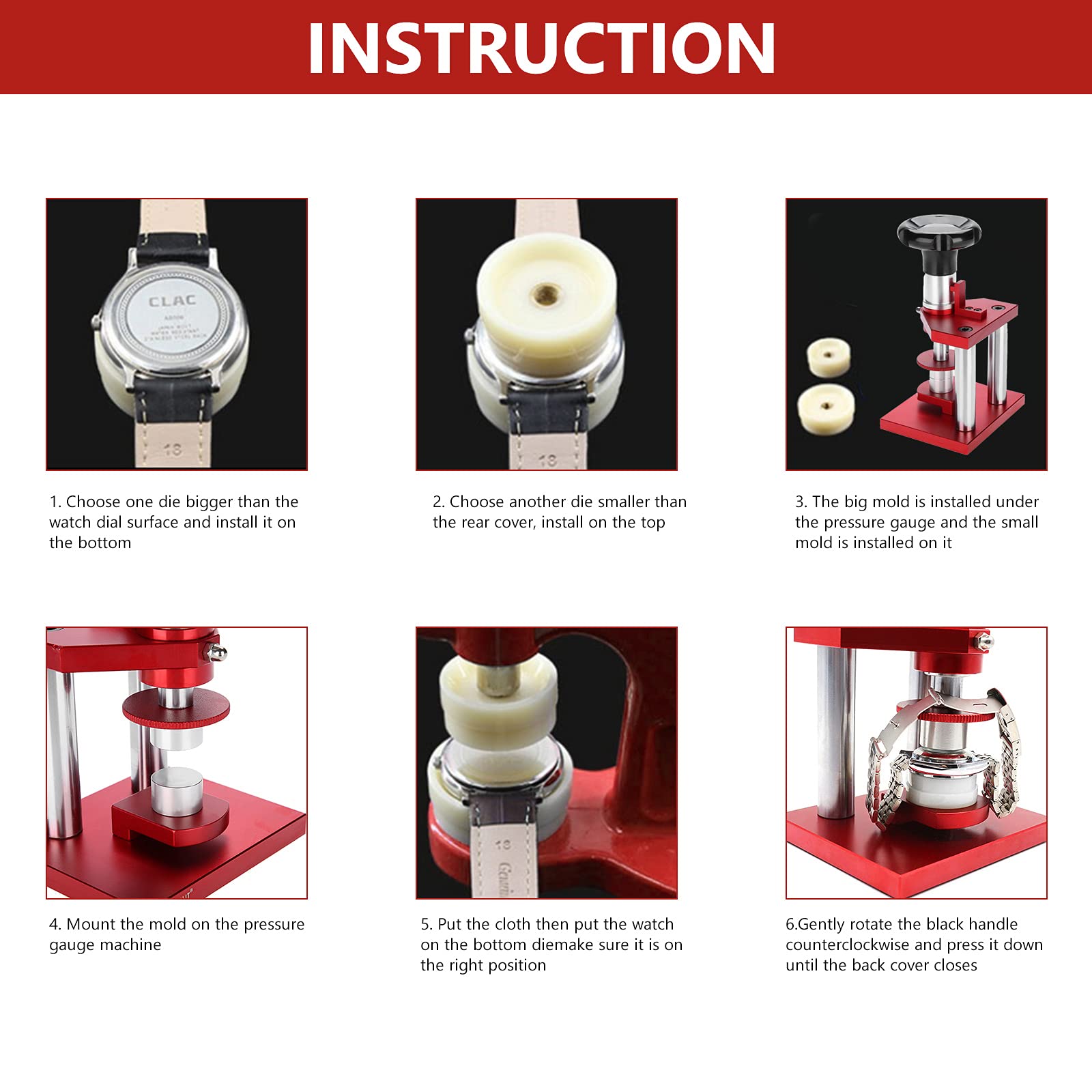

INSTRUCTIONS Choose a die which is bigger than the watch crystal and install it at screw-socket of under pliers. Choose other die which is smaller than the rear cover and install it at screw-socket of up pliers. Put a watch crystal adown at the under die and put the rear cover at a suitable position. Lightly press down. Putting a cloth under the watch crystal will protect the watch crystal.
Customer Reviews
This is a very sturdy machine. I needed it to put the back onto a watch and it worked wonderfully. The only issue I had was that there were no instructions that came with it. I found none for this product online either. But, it really is pretty simple. I looked at videos from other type of similar products and it did give me an idea on the right way to proceed without damaging the watch. Everything else came with it as mentioned in the ad. All in all, except for lack of instructions, I'm am very happy that I bought this.
